VISIONCORE

VisionCore is a fanless and waterproof Edge AI Gateway, designed for advanced security applications in automotive and industrial environments. Based on NVIDIA platform, it manages up to 4 GMSL2 digital cameras with onboard video processing and AI capabilities. Vision Core enables real-time data analysis, local automation and remote diagnostics. It's the ideal solution for those seeking security, power and versatility in a single compact system.

DATASHEET

VAI AL DATASHEET

Application

Interfaces

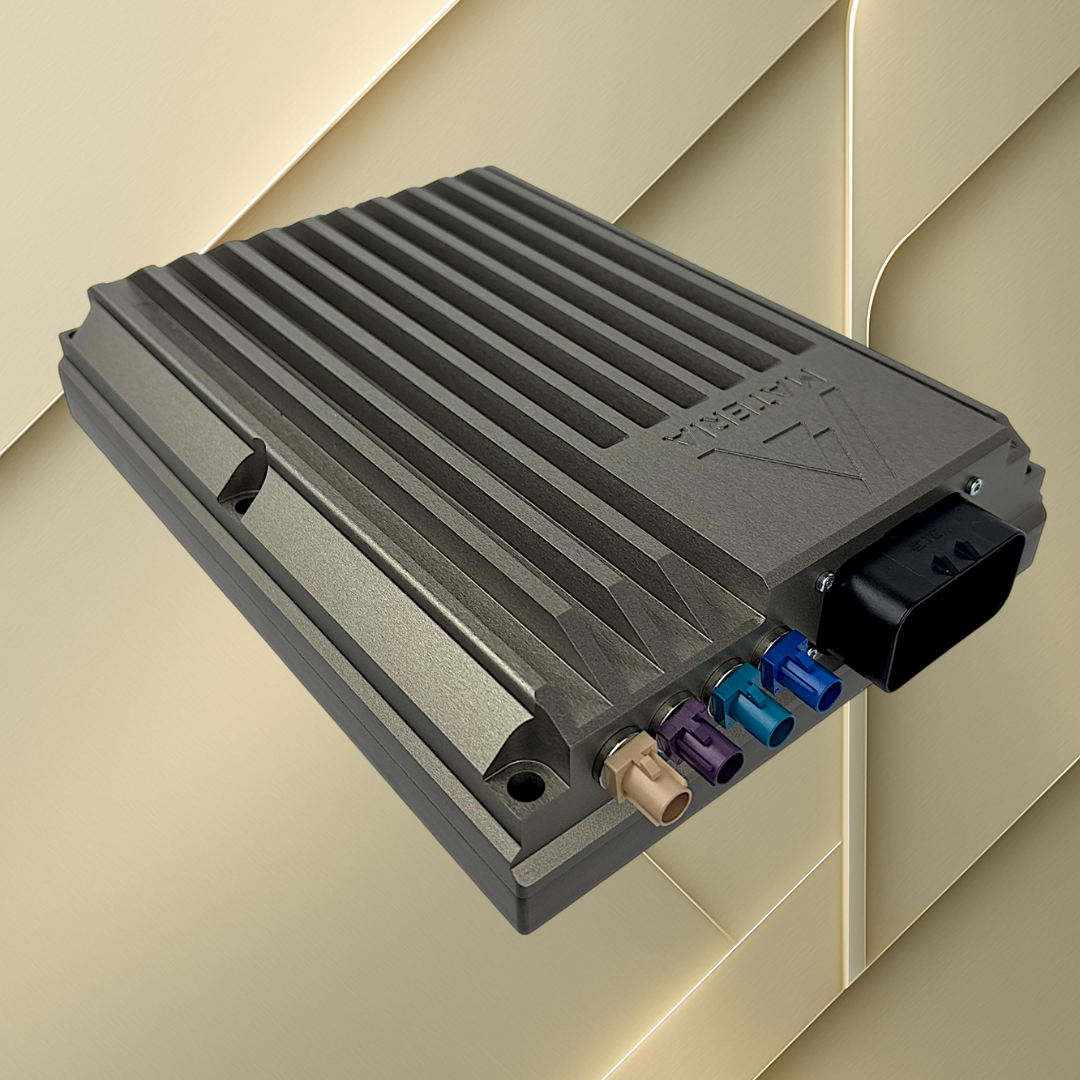

VisionCore integrates 3 CanBus FD, 4 GMSL2 inputs for digital cameras, Ethernet and HDMI. This modularity allows simple and extended connection with sensors, cameras, automation systems and existing machines

Control

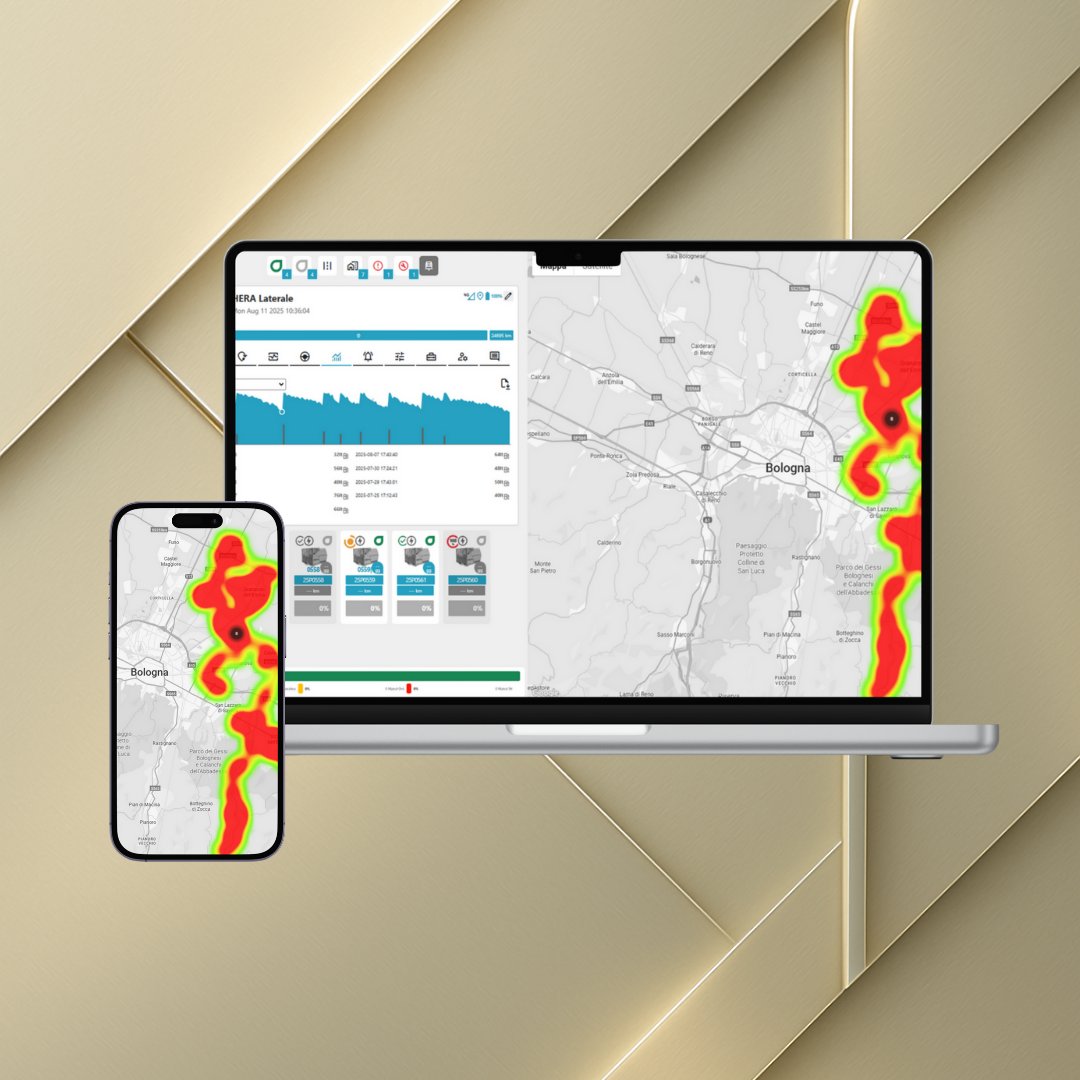

Through the dedicated web portal, VisionCore offers real-time analysis and remote video streaming to monitor and intervene wherever the vehicle is located.

Robustness

The solid milled aluminum fanless structure, certified waterproof and shockproof, resists vibrations, impacts and atmospheric agents. Operation is guaranteed in a wide temperature range, ideal for automotive and industry.

Contact

‍AI PROCESSING:
VisionCore integrates the NVIDIA Jetson Orin family with performance up to 157 TOPs, 6-core CPU and up to 16GB RAM. Supports additional Hailo 8 and Axelera Metis NPUs for extreme AI workloads and third-party neural networks.

‍

CAMERA MANAGEMENT:
Supports up to 4 simultaneous digital cameras via GMSL2 technology at 6Gbps, compatible with 4K rolling shutter and QHD+ global shutter. Includes advanced protections such as independent channels, fault detection, voltage, current and humidity control for maximum operational reliability.

‍

‍INDUSTRIAL ROBUSTNESS:

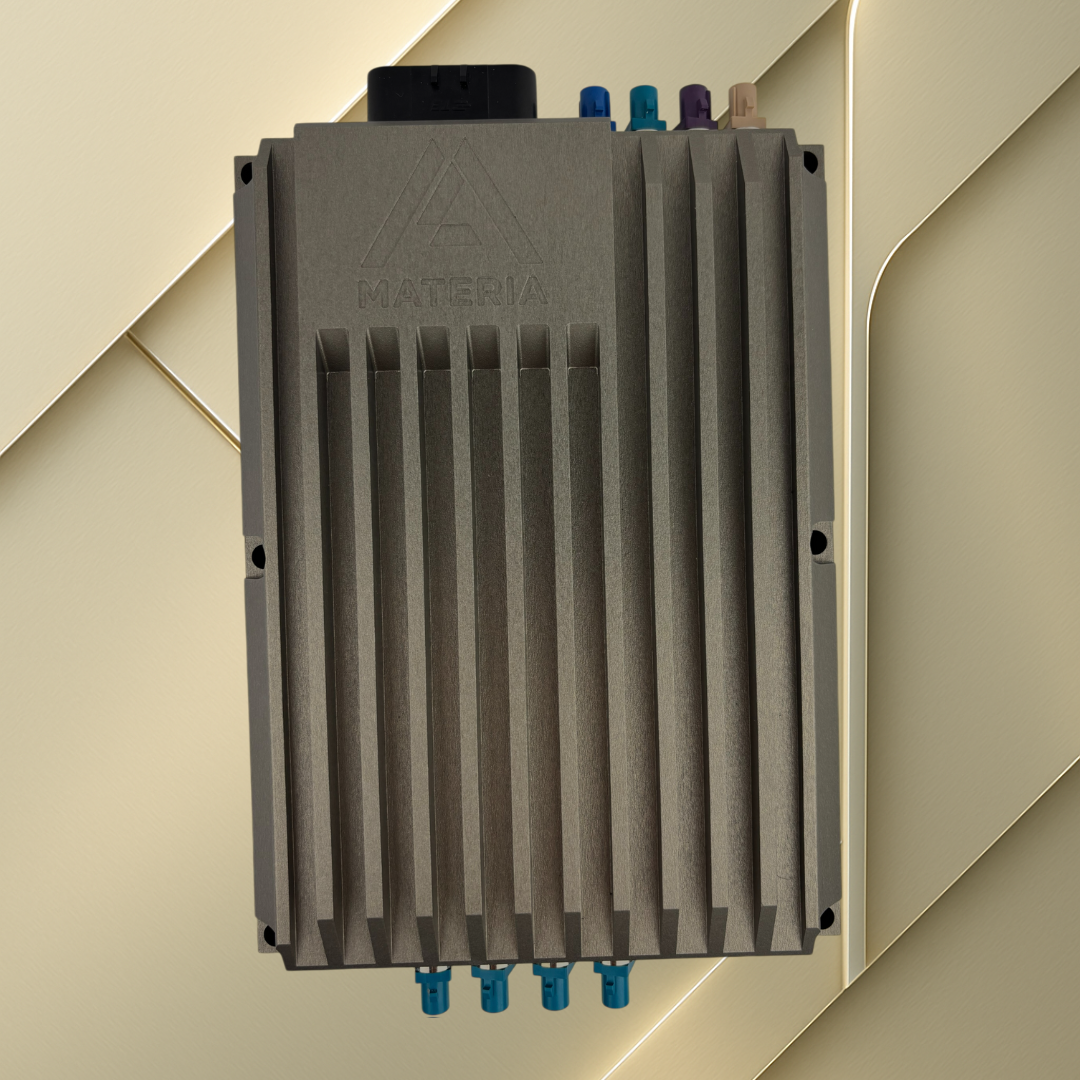

Anodized CNC aluminum case, fanless and waterproof

design with extended temperature range. Automotive components, resistance to shock and vibrations for use in extreme environments.

‍

ADVANCED STORAGE:
NVMe technology with capacity up to 2TB and transfer speeds up to 5,500 MB/s. Multiple PCIe slots for modular expansions and local storage of video and processed AI data.

‍

ENERGY EFFICIENCY:
Flexible 12-36V power supply with selectable 25W-50W consumption. Intelligent energy management to optimize performance and autonomy based on operational needs and active AI workloads.

‍
